Modified Bitumen: Enhancing Durability, Safety and Sustainability in Modern Road Construction

Introduction

As road infrastructure faces increasing demands from heavy traffic, extreme temperatures, and long-term performance expectations, conventional bitumen is often unable to provide the durability required for modern pavement systems. To address these challenges, Modified Bitumen technologies have been developed to significantly improve the mechanical and thermal performance of asphalt binders.

Today, modified bitumen products such as Polymer Modified Bitumen (PMB), Crumb Rubber Modified Bitumen (CRMB), and Performance Grade (PG) Bitumen play a critical role in the construction of highways, airports, industrial roads, and high-traffic urban networks. These advanced binders deliver superior resistance to rutting, fatigue cracking, and thermal deformation while contributing to safer and more sustainable road infrastructure.

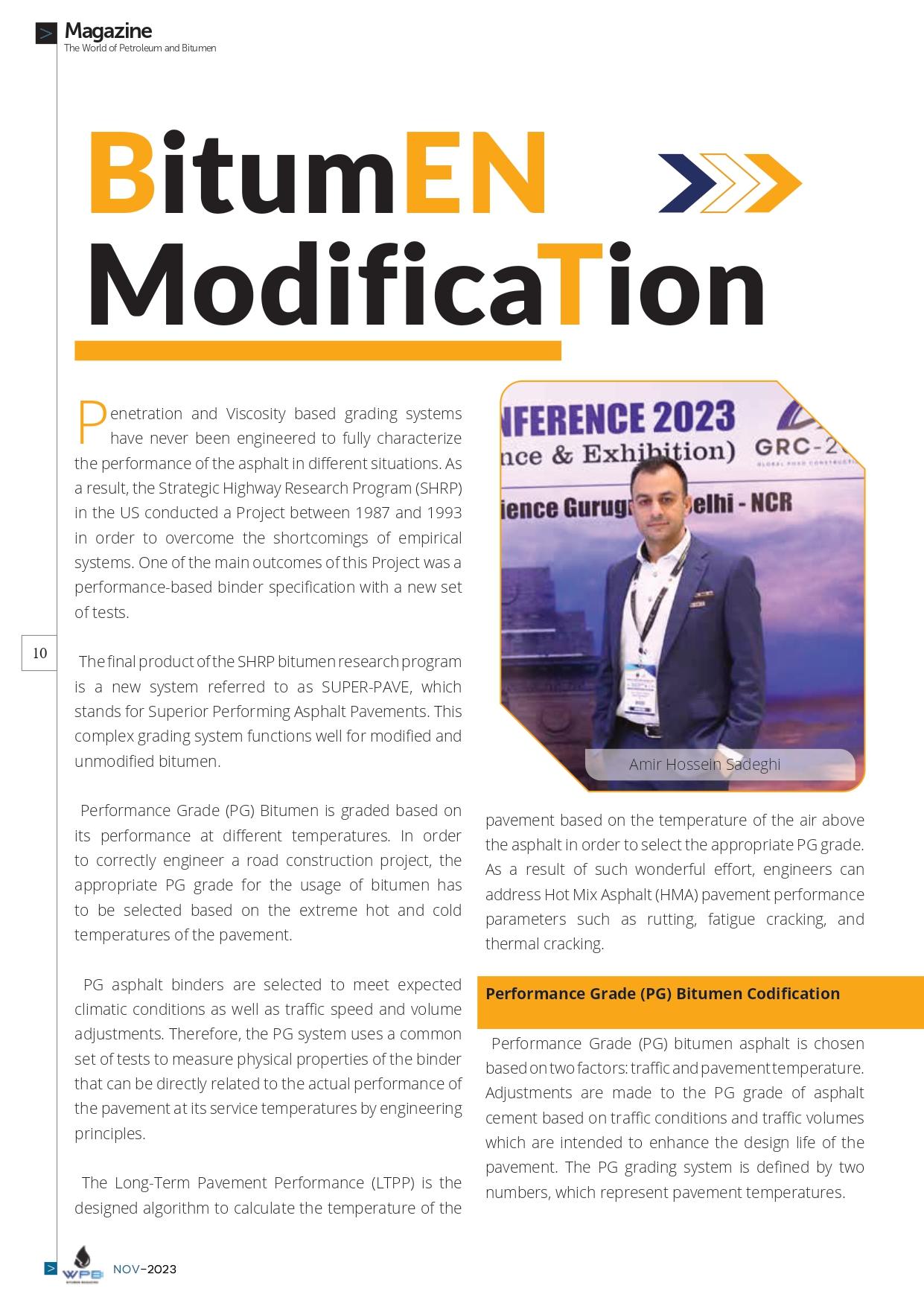

Understanding Bitumen Grading Systems

Traditional bitumen classification methods, including Penetration Grade (PEN) and Viscosity Grade (VG), were developed primarily to measure basic physical characteristics of bitumen. While these grading systems remain widely used, they do not fully predict pavement performance under actual field conditions.

To overcome these limitations, the Strategic Highway Research Program (SHRP) in the United States conducted extensive research between 1987 and 1993. The result was the development of the Superpave Performance Grading System, a revolutionary approach that evaluates bitumen based on its real-world performance at different temperatures.

What is Performance Grade (PG) Bitumen?

Performance Grade (PG) Bitumen is a performance-based asphalt binder classification system that measures how bitumen behaves under specific climatic and traffic conditions.

Unlike traditional grading methods, PG Bitumen is selected according to the expected pavement temperatures rather than simple laboratory penetration or viscosity values. This enables engineers to choose the most suitable binder for a project’s environmental and operational requirements.

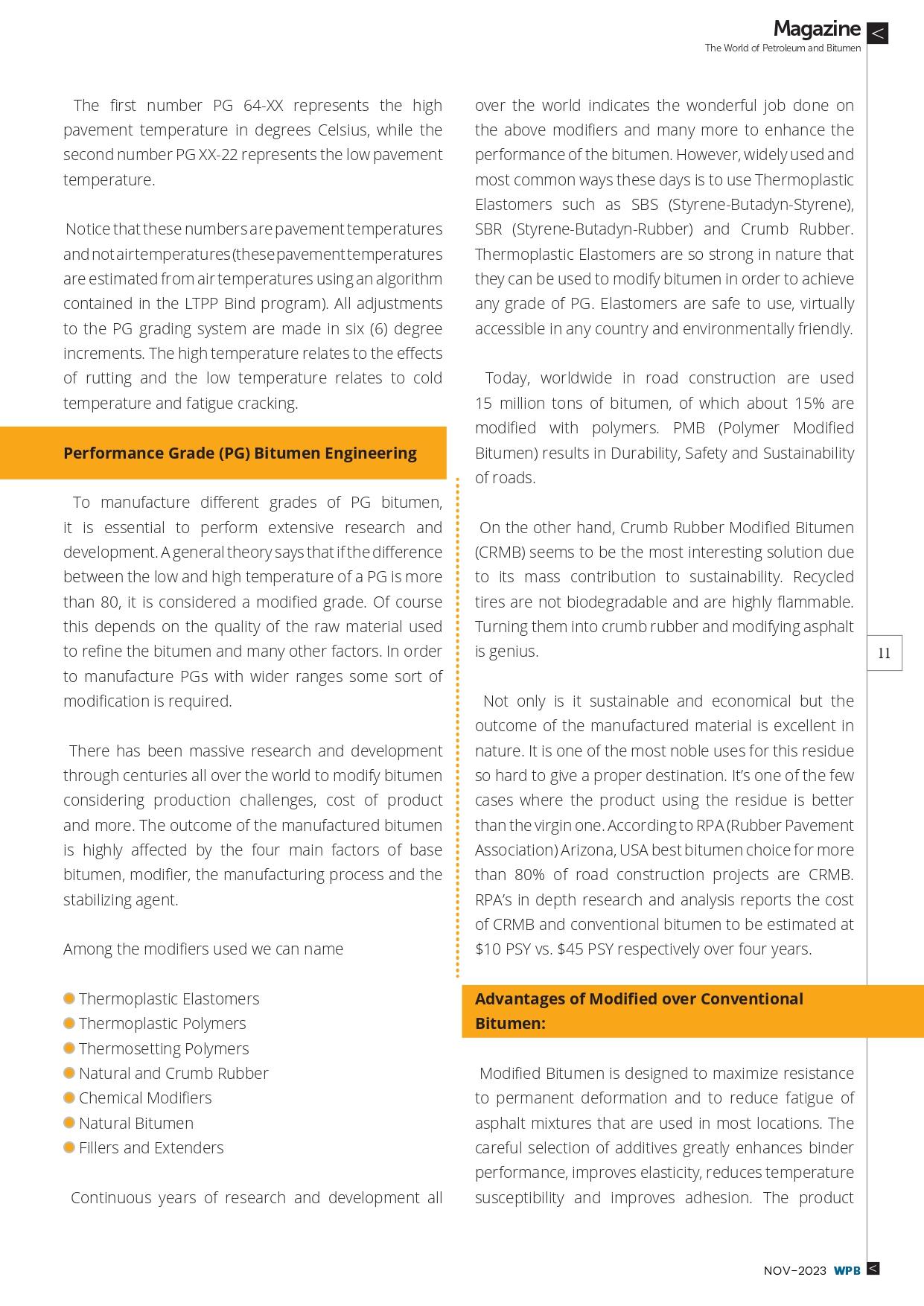

PG Bitumen Codification

The PG grading system uses two temperature values:

• The first number represents the maximum pavement temperature.
• The second number represents the minimum pavement temperature.

For example:

PG 76-22

• 76°C = Maximum pavement design temperature
• -22°C = Minimum pavement design temperature

These values represent pavement temperatures rather than air temperatures and are calculated using Long-Term Pavement Performance (LTPP) models.

This performance-based approach helps engineers reduce common pavement failures such as:

• Rutting at high temperatures
• Fatigue cracking under repeated traffic loads
• Thermal cracking in cold climates



Why Modified Bitumen is Necessary

When road projects require a wider temperature performance range, conventional bitumen alone is often insufficient.

As a general engineering guideline, when the difference between high and low PG temperatures exceeds approximately 80°C, modification becomes necessary to achieve the required performance.

Modified Bitumen is produced by incorporating specific additives into base bitumen. The final quality depends on four critical factors:

1. Base bitumen quality
2. Modifier selection
3. Manufacturing process
4. Stabilization technology

Continuous research and development over decades have led to highly advanced modification technologies capable of producing binders suitable for even the most demanding applications.

Types of Bitumen Modifiers

Several categories of modifiers are used to improve bitumen performance:

Thermoplastic Elastomers

Thermoplastic elastomers provide excellent elasticity and recovery properties, making them ideal for high-performance pavements.

Examples include:

• SBS (Styrene-Butadiene-Styrene)
• SBR (Styrene-Butadiene Rubber)

Thermoplastic Polymers

These modifiers improve stiffness and rut resistance while maintaining durability under heavy traffic conditions.

Thermosetting Polymers

Used in specialized applications requiring enhanced structural stability and long-term performance.

Crumb Rubber

Produced from recycled tires, crumb rubber enhances flexibility, crack resistance, and sustainability while reducing environmental waste.

Chemical Modifiers and Fillers

Additional chemical agents and mineral fillers are often incorporated to improve adhesion, aging resistance, and workability.

Polymer Modified Bitumen (PMB)

Polymer Modified Bitumen (PMB) is one of the most widely used modified binders worldwide.

By incorporating high-performance polymers into bitumen, PMB delivers:

• Improved elasticity
• Higher softening points
• Enhanced fatigue resistance
• Better rutting resistance
• Superior aging performance

PMB is particularly suitable for:

• Highways
• Airports
• Urban expressways
• Heavy traffic corridors
• Stone Mastic Asphalt (SMA)
• Porous asphalt systems

Today, approximately 15% of global road construction bitumen consumption consists of polymer-modified products, reflecting their proven contribution to road durability, safety, and sustainability.

Crumb Rubber Modified Bitumen (CRMB)

Crumb Rubber Modified Bitumen (CRMB) is increasingly recognized as one of the most sustainable solutions in modern pavement engineering.

CRMB is manufactured using recycled tire rubber that is processed into fine crumb particles and blended with bitumen.

Sustainability Benefits of CRMB

Millions of used tires are generated globally each year. Since tires are non-biodegradable and highly flammable, recycling them into asphalt binders provides an environmentally responsible solution.

Benefits include:

• Waste tire recycling
• Reduced environmental impact
• Extended pavement life
• Lower maintenance requirements
• Improved crack resistance
• Enhanced flexibility

Research conducted by pavement organizations around the world has demonstrated the effectiveness of CRMB in both performance and lifecycle cost savings.

Advantages of Modified Bitumen Over Conventional Bitumen

Modified Bitumen offers significant performance improvements compared to conventional binders.

Enhanced Rutting Resistance

Improved stiffness at elevated temperatures reduces permanent deformation under heavy traffic loads.

Increased Fatigue Life

Greater elasticity allows pavements to withstand repeated traffic stress without premature cracking.

Better Thermal Crack Resistance

Modified binders remain flexible at low temperatures, reducing thermal stress failures.

Improved Adhesion

Enhanced bonding between bitumen and aggregates improves pavement durability and moisture resistance.

Lower Maintenance Costs

Longer service life reduces repair frequency and lowers lifecycle costs.

Superior Performance in High-Traffic Areas

Modified bitumen is particularly effective for:

• Highways
• Airports
• Bus lanes
• Roundabouts
• Industrial roads
• Heavy freight corridors

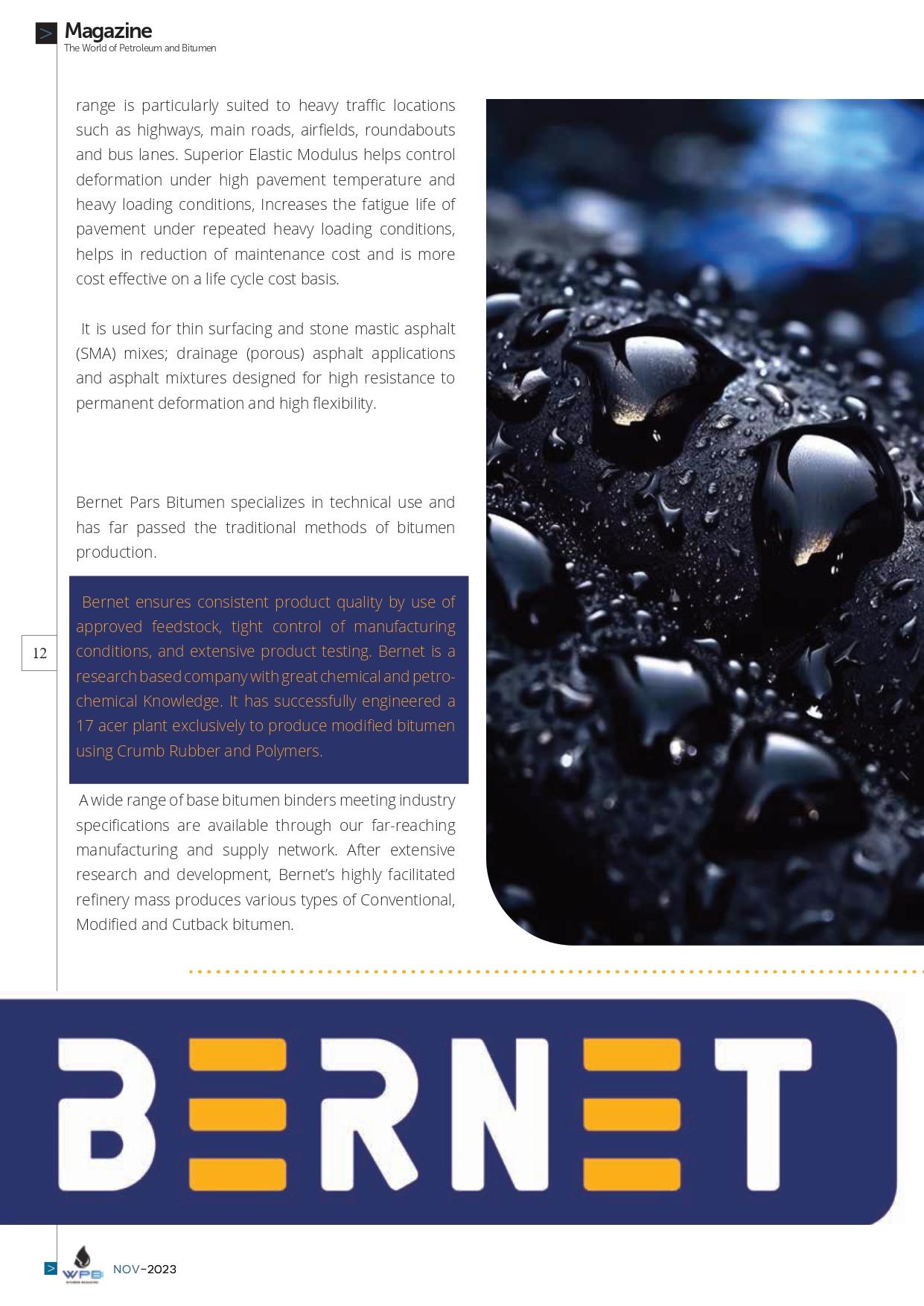

Bernet Pars Expertise in Modified Bitumen Production

Bernet Pars Bitumen has developed specialized expertise in the research, engineering, and production of advanced bitumen solutions.

Through extensive laboratory testing, strict process control, and modern manufacturing technologies, Bernet produces a comprehensive range of:

• Performance Grade (PG) Bitumen
• Polymer Modified Bitumen (PMB)
• Crumb Rubber Modified Bitumen (CRMB)
• Conventional Bitumen
• Cutback Bitumen

The company operates dedicated production facilities designed specifically for modified bitumen manufacturing using both polymer and crumb rubber technologies.

By combining petrochemical expertise with continuous research and development, Bernet Pars delivers high-performance binders that meet international industry standards and support infrastructure projects worldwide.

Conclusion

Modern transportation infrastructure requires asphalt binders capable of performing under increasingly demanding conditions. Modified Bitumen technologies such as PG Bitumen, PMB, and CRMB provide the durability, safety, and sustainability needed to meet these challenges.

Whether the objective is extending pavement life, reducing maintenance costs, improving resistance to extreme temperatures, or supporting environmental sustainability, modified bitumen has become an essential component of modern road construction.

With advanced manufacturing capabilities and a strong commitment to innovation, Bernet Pars Bitumen continues to provide reliable and high-performance solutions for road projects across global markets.
