Durable Mastic Solutions
Mastic and Sealant
Bernet Mastic & Sealant grades M1–M4 with QC-verified properties: penetration at 25 °C, softening point ≥70 °C, specific gravity 1.0–1.2, 160–165 °C mixture temperature. Tested per ASTM D5/D36/D70.
Quality-Controlled Sealant Grades for Lasting Performance

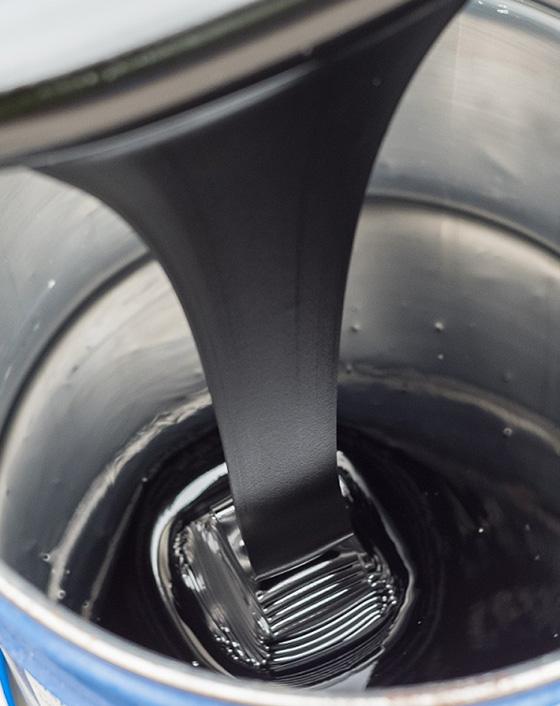

Mastic & Sealant Bitumen
Bernet Bitumen manufactures bituminous mastic & sealant compounds engineered for long-term waterproofing, joint sealing, and crack repair in roads, bridges, tunnels, and building envelopes. Each grade below reflects the exact QC controls recorded in your MASTIC sheet.
Engineered for Sealing and Waterproofing Performance
Every batch is verified for softening point, penetration (25 °C), specific gravity (25 °C), mixture/application temperature, and related QC checks. This ensures consistent workability during installation and reliable in-service behavior under thermal movement and loading.
Engineered for Strength
Comprehensive Range of Mastic & Sealant Bitumen
Below are our Mastic & Sealant Bitumen grades. Each section provides a short technical overview, indicative property ranges, typical applications, and standards. Where projects require tighter tolerances, we provide custom production and technical support.
Bitumen M1
Overview: Hot-applied bituminous mastic/sealant balancing workability, adhesion, and temperature stability for general road and structural sealing.
Indicative properties:
- Penetration @ 25 °C (0.1 mm): 30 (ASTM D5)
- Softening Point (°C): 70 (min) (ASTM D36)
- Specific Gravity @ 25 °C (Kg/cm³): 1.0 – 1.2 (ASTM D70)
- Mixture temperature in executive equipment: 160–165 °C (sheet value)
Applications: Bridge and pavement expansion joints, crack sealing (highways/runways), and building waterproofing details.
Standards: Complies with ASTM D5, ASTM D36, and ASTM D70 testing standards as specified in Technical Datasheet for polymer-modified bitumen mastic used in hot-applied sealing of asphalt joints and cracks.
Bitumen M2
Overview: High-flexibility mastic/sealant tuned for greater joint movement while maintaining bond and stability in warm conditions.
Indicative properties:
- Penetration @ 25 °C (0.1 mm): 40 (ASTM D5)
- Softening Point (°C): 70 (min) (ASTM D36)
- Specific Gravity @ 25 °C (Kg/cm³): 1.0 – 1.2 (ASTM D70)
- Mixture temperature in executive equipment: 160–165 °C (sheet value)
Applications: Wide-movement joints on long-span bridges, airport slabs, and parking structures.
Standards: Complies with ASTM D5, ASTM D36, and ASTM D70 testing standards as specified in Technical Datasheet for polymer-modified bitumen mastic used in cold-applied or cold-weather sealing of asphalt joints and cracks.
Bitumen M3
Overview: Higher-modulus mastic/sealant for heavy-duty and industrial service where extrusion/rutting resistance matters.
Indicative properties:
- Penetration @ 25 °C (0.1 mm): 30 (ASTM D5)
- Softening Point (°C): 70 (min) (ASTM D36)
- Specific Gravity @ 25 °C (Kg/cm³): 1.0 – 1.2 (ASTM D70)
- Mixture temperature in executive equipment: 160–165 °C (sheet value)
Applications: Container yards, ports, warehouse aprons, toll plazas, and other high-load joints.
Standards: Complies with ASTM D5, ASTM D36, and ASTM D70 testing standards as specified in BERNET Technical Datasheet for polymer-modified bitumen mastic used in heavy-duty sealing of concrete joints and runway pavements.
Bitumen M4
Overview: Premium waterproofing mastic/sealant combining durability and adhesion for long service life on civil and building works.
Indicative properties:
- Penetration @ 25 °C (0.1 mm): 20 (ASTM D5)
- Softening Point (°C): 70 (min) (ASTM D36)
- Specific Gravity @ 25 °C (Kg/cm³): 1.0 – 1.2 (ASTM D70)
- Mixture temperature in executive equipment: 160–165 °C (sheet value)
Applications: Tunnels, retaining walls, roofs/basements, structural cold joints, parapets, and bridge accessories.
Standards: Complies with ASTM D5, ASTM D36, and ASTM D70 testing standards as specified in the Technical Datasheet for polymer-modified bitumen mastic used in heavy-duty sealing of concrete joints, tunnels, bridge structures, and runway pavements.
Applications of Cutback Bitumen
- Strong adhesion to concrete, asphalt, steel, and masonry
- Stable at service temperatures; installation with defined 160–165 °C mixture temperature
- Grade-specific penetration for the right balance of flexibility vs. stiffness
- Consistent QC per ASTM D5 / D36 / D70
Why Choose Bernet Bitumen
- ISO-controlled production and QC
- Batch-to-batch consistency verified
- Export-ready supply and technical application support
Bernet Bitumen Mastic & Sealant Bitumen Grades Technical Data (Consolidated)
| Grade | Penetration @25°C (0.1mm) | Softening Point (°C) | SPGR @25°C (kg/cm³) | Mixer Temperature (°C) | Equipment Mixture Temp (°C) | Max Tail Heating (°C) | Test Standard | Packaging |
|---|---|---|---|---|---|---|---|---|
| M1 | 30 | 70 | 1 | 180 ± 5 | 160–165 | 190 | ASTM D5, ASTM D36, ASTM D70 (Other temperature tests – internal standard) | 16KG Carton Box / 20KG Bucket |
| M2 | 40 | 70 | 1 | 170 ± 5 | 160–165 | 190 | ASTM D5, ASTM D36, ASTM D70 (Other temperature tests – internal standard) | 16KG Carton Box / 20KG Bucket |
| M3 | 30 | 70 | 1 | 170 ± 5 | 160–165 | 190 | ASTM D5, ASTM D36, ASTM D70 (Other temperature tests – internal standard) | 16KG Carton Box / 20KG Bucket |
| M4 | 20 | 70 | 1 | 170 ± 5 | 160–165 | 180 | ASTM D5, ASTM D36, ASTM D70 (Other temperature tests – internal standard) | 16KG Carton Box / 20KG Bucket |
